BNF100

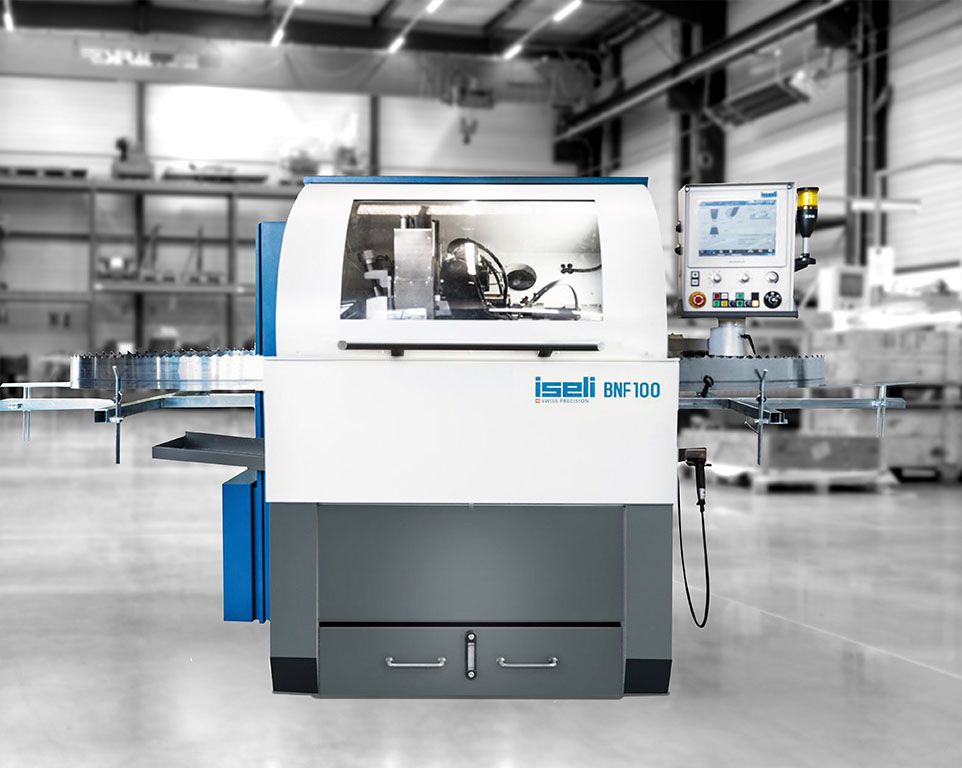

The BNF 100 side-dressing machine is a 4-numerical axis machine.
Band saw blade width
75 to 360 mm
Diameter of wheel
100 mm
Tooth pitchde 10 à 100 mm
Rake angle 0° to 35°
Clearance angle0° to 7°
Dimensions 4250 x 1725 x 1812 mm
Weight670 Kg
Main features
The BNF 100 side-dressing machine is a 4-numerical axis machine. It is fully enclosed, equipped with a powerful coolant system, pneumatic clamping and a colour touch screen with program memory. Thanks to the electric lyre and the tooth height stop, the positioning of the blade is fast and precise. Programming is easy and user-friendly and access to remote maintenance is included.
